The 900V S-Class Switchable Current Regulators are available in 1-100mA nominal current rating. They are available in TO-252 and TO-220 packages. These regulators feature 40W of continuous power dissipation. These regulators are ideal candidate for on-off switchable current source.

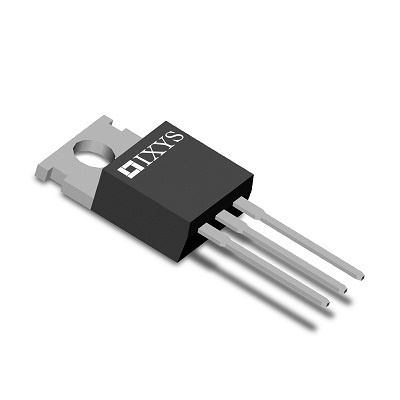

IXCP10M90S
Our proven Technology
Minimum of 900 V breakdown. 40 W continuous dissipation. International standard packages JEDEC TO-220 and TO-252. Startup circuits for SMPS. Highly stable voltage sources. Instantaneously reacting resettable fuses. Soft start-up circuits.
Specifications
| Weight | 0.003 kg |
|---|---|
| Weight (g) | 3 |
| Fast Intrinsic Rectifier | On/Off switchable current source |
| AC and DC Motor Drives | Surge limiters and voltage protection |
| Package Type | TO-220 |
| Business Group | POWER SEMI |
| Product Line | POWER MOSFET DISCRETE |
| Drain Source (V) | 900 |
| Max Reverse Recovery (ns) | |
| Power Dissipation (W) | 40 |
| Rth (j-c) (K/W) | 3.1 |
| Voltage (V) | 900 |
Features and benefits
