Continuous and periodic DC grid impedance measurement with MoMe and ONIS
The morEnergy DC MoMe is the first power quality and grid impedance measurement device for onboard, live DC grid monitoring.
Electrical behaviour of DC-grids
The electrical behaviour of ships with DC-grids are relatively unstudied and therefore unknown. DC grids of ships behave very differently to AC grids because of the high number of power converters, the more capacitive behaviour, and the lack of zero crossing in load currents.
Power quality and health monitoring
DC ships with a high number of switching converters and constantly changing load conditions should be monitored in real-time at the switchboard and the cabins to ensure safe operations and unnecessary tripping of protective devices.
Time- and frequency dependent grid impedance
Modern AC/DC and DC/DC converters could switch at a grid resonance frequency. The knowledge of resonance points can avoid such switching and prolong lifetime of electrical components like filters.
Technical specifications DC MoMe
- DC voltage measurements up to 1.000 V peak between phase and neutral or phase-to-phase conductors
- Precise current measurements up to 1.000 Apeak
- Current and voltage ripple detection up to 30 kHz
- Grid impedance measurement from 0 Hz to 30 kHz
- Power quality analysis according to IEC 60092-101 and IEC CDTR 63282
▪ Voltage tolerance
▪ Voltage cyclic variation deviation
▪ Voltage ripple
▪ Fast transients - Additionally, to today’s norms:
▪ Current ripple
▪ Power factor
▪ Voltage unbalance in bipolar systems
▪ Resonance detection
▪ Under- and over-voltage ride through - Health monitoring & power management
- Analysis of abnormal grid states
- Communications interface: WLAN, LTE, Ethernet, USB and CAN
- Time synchronisation via NTP or GPS
- Real-time monitoring of the PQ parameters via web interface
- Operating environment IP 20, 0 – °C
Increase System Performance
Reduce System Energy Loss
Avoid Resonance Effects
Periodic monitoring of DC grids

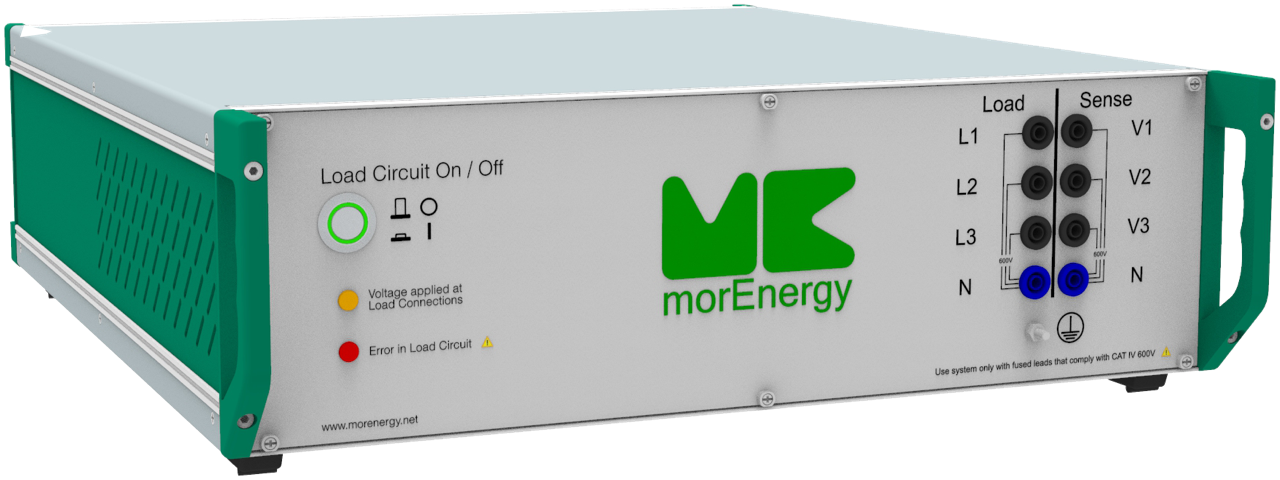

ONIS Online Network Impedance Spectrometer
With the ONIS, high frequency power quality measurements can be performed. MorEnergy specializes in network impedance measurement for the detection of dangerous resonances in the frequency range up to 500 kHz in the power network. This allows us to detect problems before they cause system or component failure.
Technical specifications ONIS
- Voltage range at the load and sense terminals (outer conductor-outer conductor voltage) ± 70 to max. 1000 Vpeak
- 50 Vrms to 690Vrms
- Measurement category of load and sensor connections CAT IV 600 V to 1000 V
- 50/60Hz Power frequency
- Maximum current of load connections 6 Apeak
- Frequency range of impedance measurement DC up to a maximum of 500 kHz
- ±5% measurement tolerance of impedance measurements
- Representation of the net impedance as magnitude & phase and Nyquist curve
- Automated three-phase impedance measurement
- Class A measurement accuracy for voltage measurements
- Sampling rate up to 1 Mhz for voltage measurements
- Three-phase measurement inputs for voltage measurement
- Supply voltage of the ONIS 12 Vdc ± 1.2 Vdc, max. 5A 60W
- Connection via 5.5/2.1 hollow plug
- Supply voltage of the supplied 12V power supply for the ONIS 100-240Vac 50/60 Hz
- Operating environment IP 20, 0-40°C, 75% RH
- Maximum operating altitude < 2000 m above sea level
- Dimensions (LxWxH) 54 cm x 45 cm x 14,5 cm
- Weight 13 kg
ONIS Types
ONIS 600: For networks with voltages up to 600 Vpeak (400 Vrms)
ONIS 1000: For networks with voltages up to 1000 Vpeak (690 Vrms)
Frequency ranges
- ONIS Classic: Frequency range from DC to 20 kHz
- ONIS Premium: Frequency range from DC to 150 kHz
- ONIS Plus: Frequency range from DC to 500 kHz
Introducing the Digital Twin Solution by morEnergy and Astrolkwx
ONIS 1000 for spectral grid impedance measurement
In modern power grids, the growing share of power electronics like inverters and switching-mode power supplies creates highly dynamic and complex topologies. Accurately determining spectral grid impedance through simulations alone can be unreliable due to many unknown or hard-to-estimate parameters. morEnergy and Astrolkwx, with over 15 years of experience, offer precise solutions for the design, testing, and grid interaction of renewable energy systems.
The morEnergy Digital Twin solution provides a cost-effective and efficient way to conduct detailed investigations within simulations, making it more employee-friendly. The challenge lies in converting real network data into a suitable network model for conclusive simulations.
Our Solution
Online Network Impedance Spectrometer (ONIS) and Power Quality (PQ) with 19” Rack Design
Measurement
Real spectral impedance data is recorded using the ONIS 1000 in the actual power grid. The ONIS 1000 (Online Network Impedance Spectrometer) offers spectral impedance measurement up to 690 VAC RMS on 50 Hz/60 Hz mains, with long-term spectral impedance measurement and monitoring up to 500 kHz total bandwidth. It also features simple operation and results visualization in the morEnergy Measurement Center.
Digital Twin
Simulations for investigation
When investigating real grid problems, it is more cost-effective and more employee-friendly to carry out detailed investigations within simulations. The difficulty lies in converting the real network data into a suitable network model for carrying out conclusive simulations.
Key steps in the Digital Twin process
Modelling
morEnergy’s impedance synthesis engine creates physically accurate, passive RLC models from the measured data.
Export
The resulting circuit is exported as a SPICE netlist or Matlab/Simulink model for use in simulations.
Simulation
The real measured, frequency-dependent behavior of a grid connection point is integrated into simulations using the generated model.
Application
A grid Digital Twin can be connected to PV inverter Digital Twins to simulate and assess stability as more inverters are added.
Technical Highlights
- Grid inverter classification via impedance signature analysis: Identify and classify distinct utility inverters using high-frequency spectral footprinting. By mapping these unique electrical signatures, the system enables precise tracking of complex operating parameters and harmonic behaviors directly within the network.
- Cross-platform integration for grid simulation models: Deploy your compiled network twins directly into existing testing workflows and simulation ecosystems. This open architecture eliminates software compatibility barriers, ensuring smooth, cross-platform integration with your active engineering tools.
- Centralized grid monitoring & asset analytics: Monitor every computed asset parameter, upcoming digital simulation schedules, and live emulation diagnostics from a single, unified workspace deck. This centralized dashboard provides engineering teams with complete operational visibility and real-time data control.
- Integrated toolbar for fast grid data management: The entire configuration and management suite is embedded right within the main navigation window of your impedance data logs. This rapid access layout ensures that critical diagnostic tools are always just one click away during active simulation sessions.
ONIS 20kV: Mobile turnkey solution for complex grid measurement
Analyze intricate grid behavior directly in the field

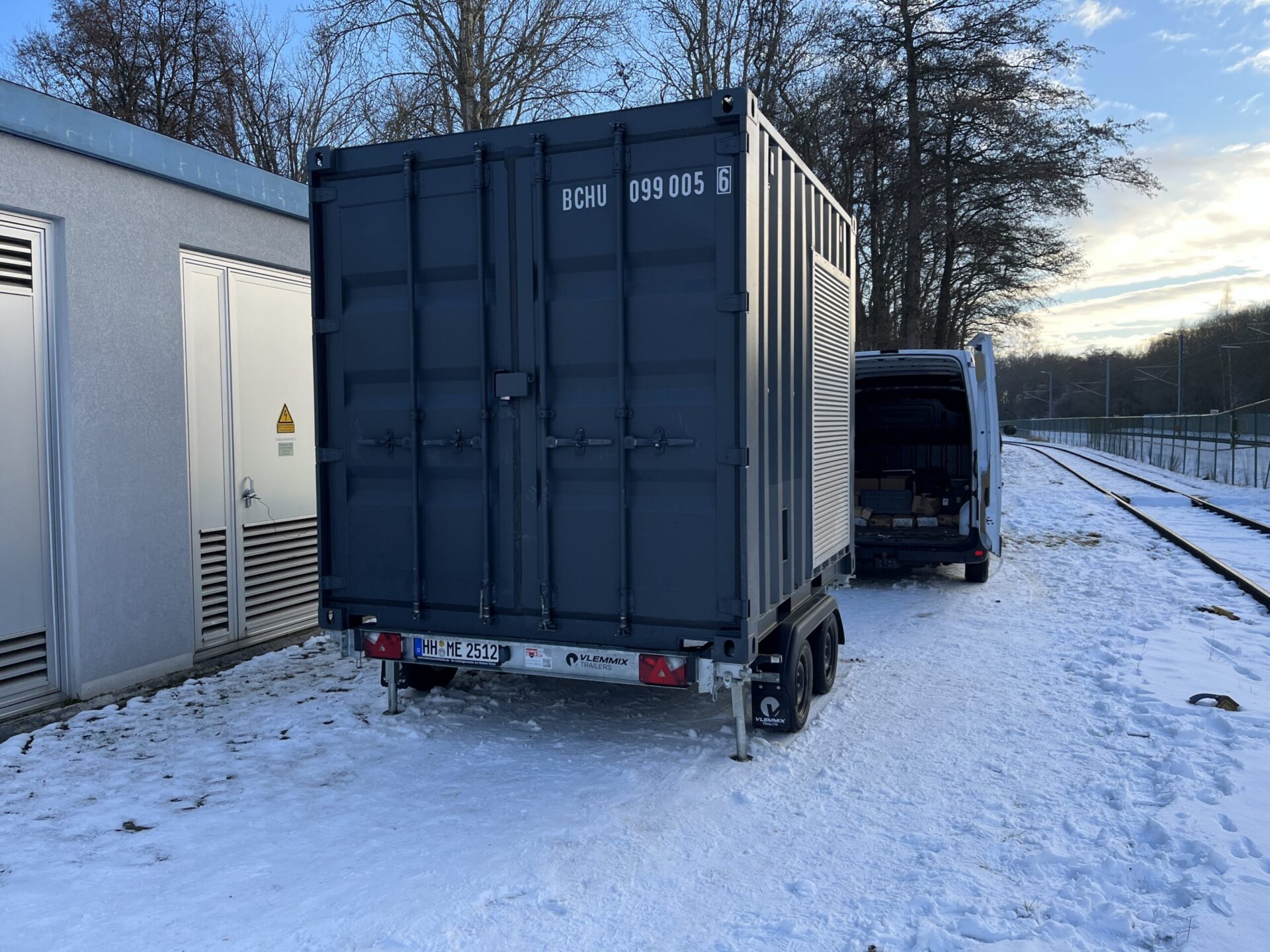

The ONIS 20kV delivers high-precision, mobile network testing by enabling seamless impedance and admittance measurements in medium-voltage grids up to 150 kHz. Engineered as a fully mobile turnkey infrastructure, this rugged system is housed inside a compact 10-foot container optimized for rapid, temporary field operations without requiring local station infrastructure. Designed for comprehensive, high-frequency network characterization, it ensures seamless compatibility across standard 15 kV and 20 kV distribution systems, including specialized railway power links. With its built-in grid approval capabilities, the ONIS 20kV provides the reliable, high-fidelity analytical proof essential for rolling stock compliance and automated inverter grid conformity checks directly on site.
High-fidelity power quality diagnostics & multi-grid applications
Beyond its core testing capabilities, the ONIS 20kV delivers advanced, deep-tier admittance logging up to 150 kHz, providing instant on-site visibility into complex harmonic distribution configurations and erratic resonance layers. To support these field diagnostics, the system generates detailed impedance magnitude mapping diagrams directly from its mobile, deployment-ready 10-foot container. Because this self-sustaining mobile system solution operates completely independently of local substation infrastructure, it is perfectly optimized for swift, temporary field operations at remote substations. Furthermore, its versatile multi-grid compatibility allows it to analyze both standard 20 kV industrial utility networks and specialized 15 kV railway power links, making the ONIS 20kV an indispensable verification resource for international rolling stock conformity and grid compliance approvals.
