The 450V S-Class Switchable Current Regulators are available in 2-100mA nominal current rating. They are available in TO-252 and TO-220 packages. These regulators feature 40W of continuous power dissipation. Their wide dynamic current range of 9-900kΩ i makes them ideal candidate for resistor programmable current source.
IXCY10M45S
Our proven Technology
Minimum of 900 V breakdown. 40 W continuous dissipation. International standard packages JEDEC TO-220 and TO-252. Startup circuits for SMPS. Highly stable voltage sources. Instantaneously reacting resettable fuses. Soft start-up circuits.
Specifications
| Weight | 0.00035 kg |
|---|---|
| Weight (g) | 0.35 |
| Fast Intrinsic Rectifier | On/Off switchable current source |
| AC and DC Motor Drives | Surge limiters and voltage protection |

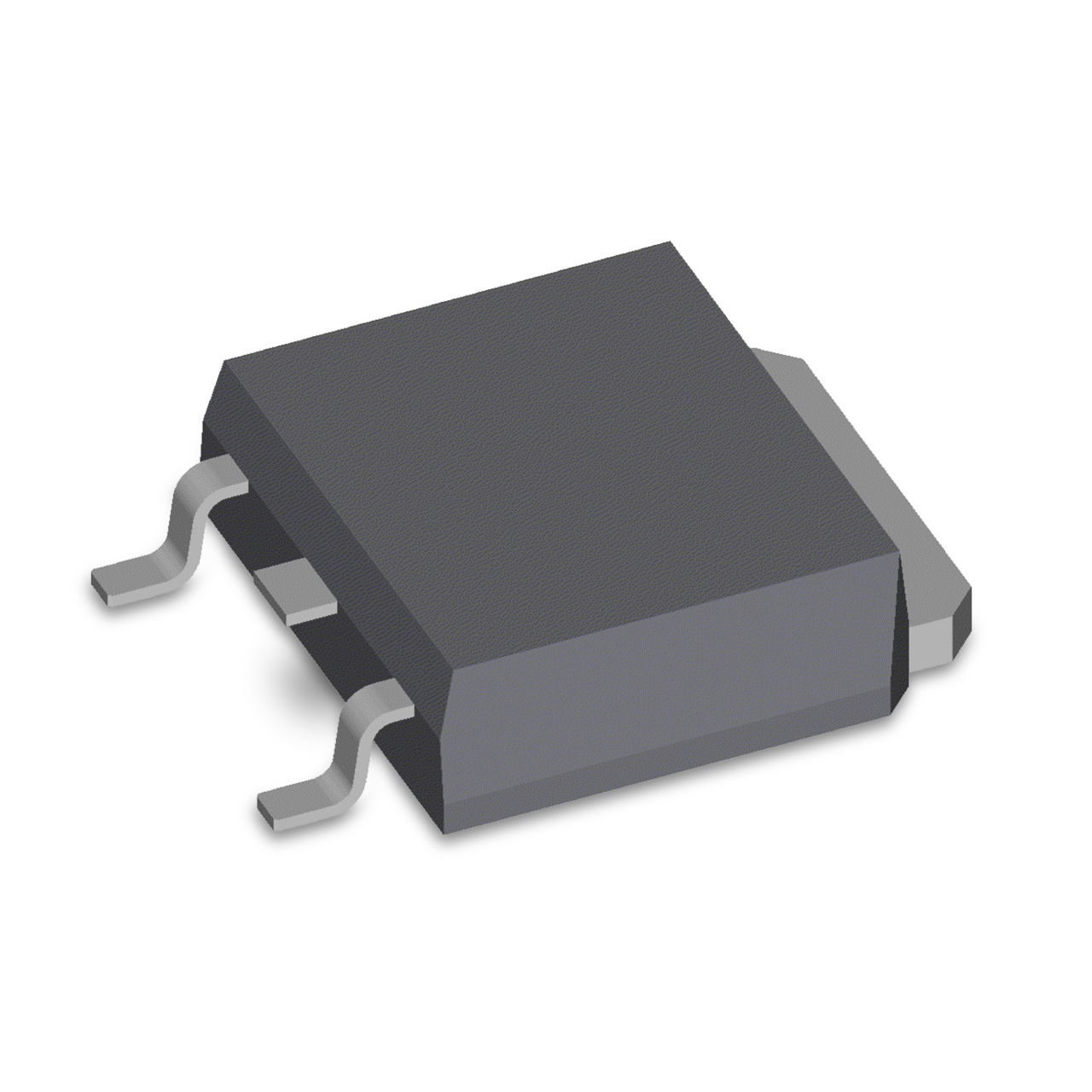

| Package Type | TO-252 |
| Business Group | POWER SEMI |
| Product Line | POWER MOSFET DISCRETE |
| Cont. Drain Curr. 25C (A) | -0.3 |
| Drain Source (V) | 450 |
| Max Reverse Recovery (ns) | |
| Power Dissipation (W) | 40 |
| Rth (j-c) (K/W) | 3.1 |
| Voltage (V) | 450 |
| Current (A) | -0.3 |
Features and benefits
More information and download request
For more information, access to the product datasheet, or to get in touch with one of our specialists. Please fill out the form below.
Thank you for your request
The datasheet is available below. We will respond to your request promptly.
Download file: IXCY10M45S_datasheet
