International Standard Packages. Dynamic dv/dt Rating. Avalanche Rated. Low QG and RDS(on). Low Drain-to-Tab Capacitance. Low Package Inductance. Switch-Mode and Resonant-Mode Power Supplies. Dc-dc converters. Uninterrupted Power Supplies. AC Motor Drives. High Speed Power Switching Applications.
| Weight | 0.01 kg |
|---|---|
| Weight (g) | 10 |
| Fast Intrinsic Rectifier | Fast Intrinsic Rectifier |
| AC and DC Motor Drives | Battery Chargers |

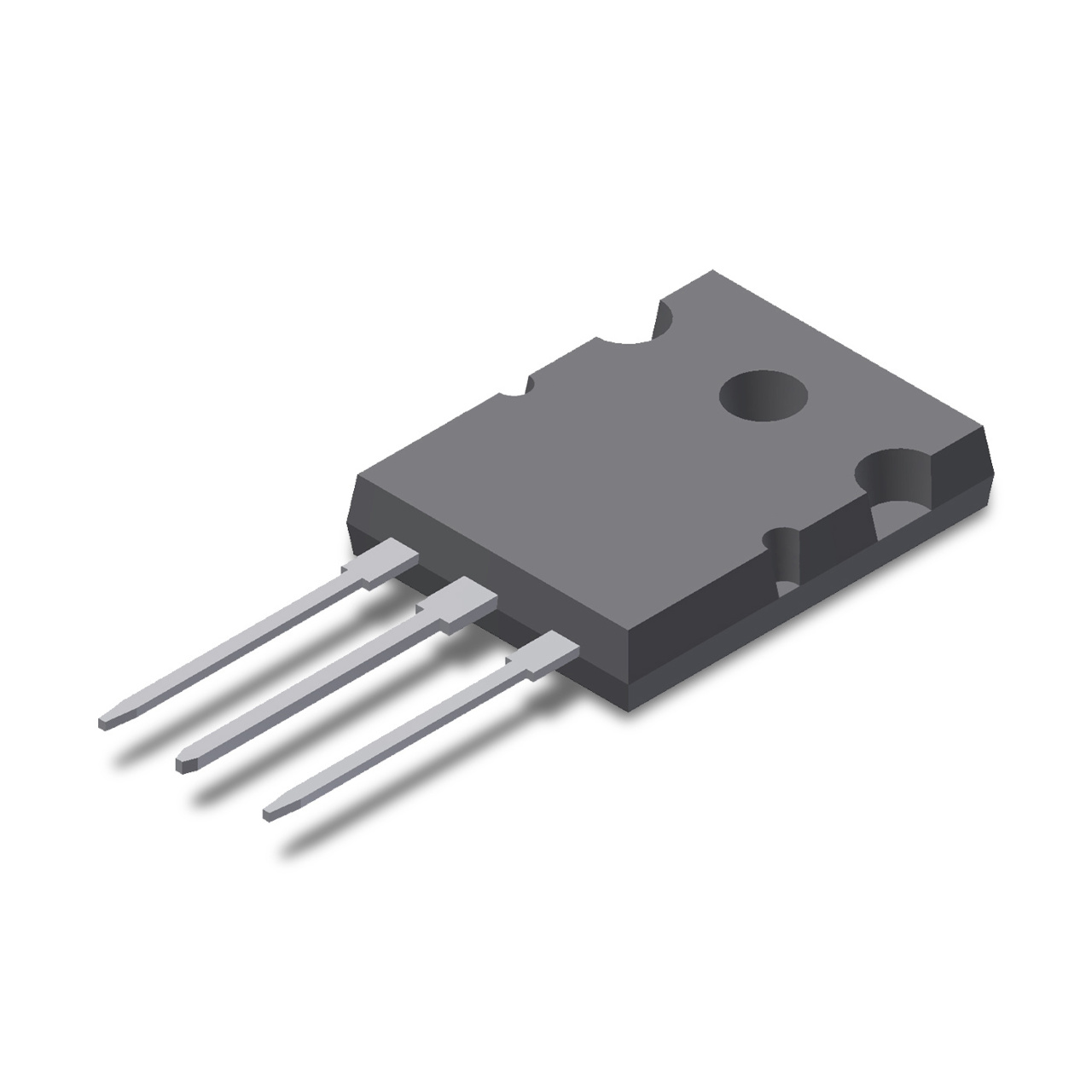

| Package Type | TO-264 |
| Business Group | POWER SEMI |
| Product Line | POWER MOSFET DISCRETE |
| Cont. Drain Curr. 25C (A) | 170 |
| Drain Source (V) | 100 |
| Gate Charge (nC) | 198 |
| Input Capacitance CISS (pF) | 6000 |
| Max On-Resistance 25C (Ohm) | 0.009 |
| Max Reverse Recovery (ns) | 150 |
| Power Dissipation (W) | 715 |
| Rth (j-c) (K/W) | 0.21 |
| Voltage (V) | 100 |
| Current (A) | 170 |
Polar™ HiPerFETs (IXF..) combine the strengths of the Polar Standard product family with a faster body diode, whose reverse recovery time (trr) is reduced to make them suitable for phase-shift bridges motor control and uninterruptible power supply applications (UPS). This family of HiPerFETs provides lowest RDS(on),
low RthJC, low Qg, and enhanced DV/DT capability.
Advantages:
Easy to Mount
Space Savings
