International Standard Packages. High Current Handling Capability. Low RDS(on) HDMOS process. Low Package Inductance. Fast intrinsic diode. Dc-dc converters. Battery chargers. Dc choppers. AC Motor Drives. Temperature and Lighting Controls.
| Weight | 0.01 kg |
|---|---|
| Weight (g) | 10 |
| Fast Intrinsic Rectifier | Avalanche Rated |
| AC and DC Motor Drives | Switched-mode and resonant-mode power supplies |

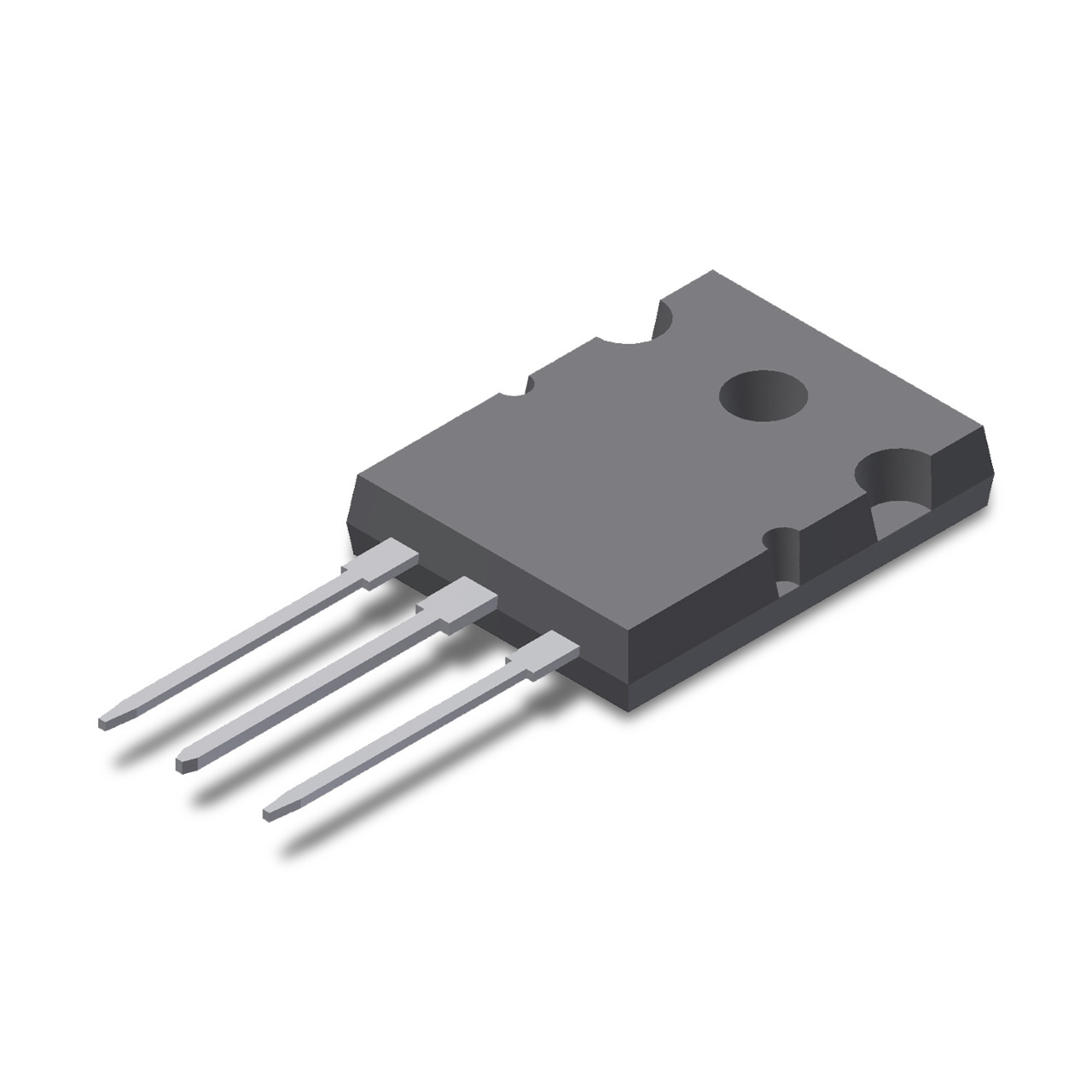

| Package Type | TO-264JD |
| Business Group | POWER SEMI |
| Product Line | POWER MOSFET DISCRETE |
| Cont. Drain Curr. 25C (A) | 180 |
| Drain Source (V) | 70 |
| Gate Charge (nC) | 395 |
| Input Capacitance CISS (pF) | 11080 |
| Max On-Resistance 25C (Ohm) | 0.006 |
| Max Reverse Recovery (ns) | 250 |
| Power Dissipation (W) | 568 |
| Rth (j-c) (K/W) | 0.22 |
| Voltage (V) | 70 |
| Current (A) | 180 |
The N-Channel HiPerFET™ Standard series includes popular Power MOSFETs (HiPerFET™) for both hard switching and resonant mode applications, offering low gate charge and excellent ruggedness with a fast intrinsic diode. This series is available in many standard industrial packages including isolated types.
Advantages:
Easy to mount
Space savings
High power density
