International Standard Packages. Low RDS(ON). Avalanche rated. Fast Intrinsic Rectifier. Switch-Mode and Resonant-Mode Power Supplies. Dc-dc converters. Uninterrupted Power Supplies. AC motor drives. Dc choppers. High Speed Power Switching Applications.
| Weight | 0.004 kg |
|---|---|
| Weight (g) | 4 |
| Fast Intrinsic Rectifier | High Current Handling Capability |
| AC and DC Motor Drives | Battery Chargers |

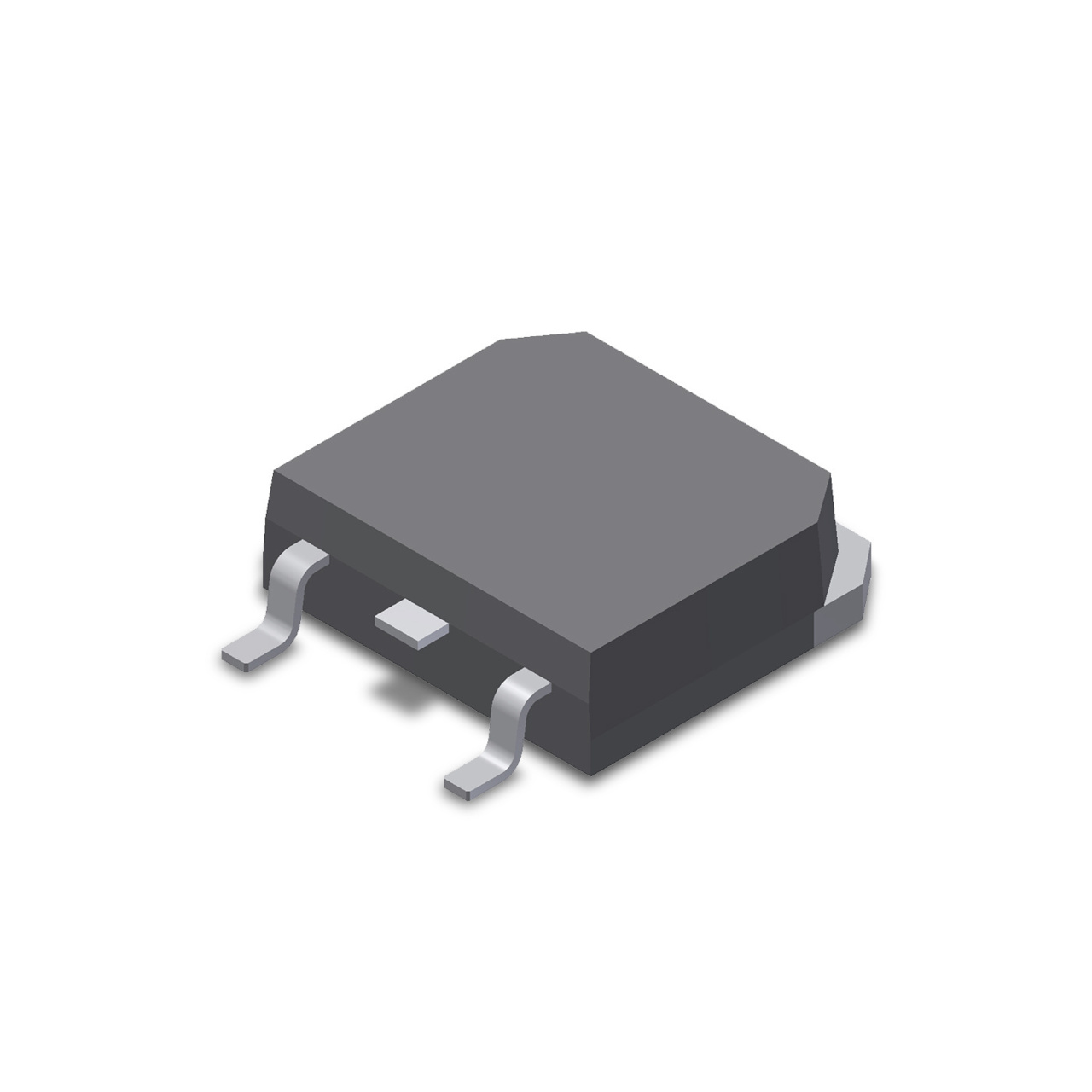

| Package Type | TO-268S |
| Business Group | POWER SEMI |
| Product Line | POWER MOSFET DISCRETE |
| Cont. Drain Curr. 25C (A) | 86 |
| Drain Source (V) | 300 |
| Gate Charge (nC) | 143 |
| Input Capacitance CISS (pF) | 9200 |
| Max On-Resistance 25C (Ohm) | 0.046 |
| Max Reverse Recovery (ns) | 150 |
| Power Dissipation (W) | 860 |
| Rth (j-c) (K/W) | 0.145 |
| Voltage (V) | 300 |
| Current (A) | 86 |
Trench Gate Power MOSFETs are ideally suited for low voltage/ high current applications, requiring an exceedingly low RDS(on), thus guaranteeing very low power Dissipation. This, combined with wide ranging operating junction temperature from -40 °C to 175 °C make them suitable candidates for automobile applications and other similar demanding applications in harsh environments.
Advantages:
Easy to Mount
Space Savings
High power density
