The discrete High Efficiency Diode series comes with a broad variety of packages and breakdown voltages up to 1200V.
Littelfuse IXYS Diode DLA20IM800PC-TUB
Our proven Technology
Power Diode Discretes-Rectifier TO-263D2
Specifications
| Weight | 0.002 kg |
|---|---|
| Weight (g) | 2 |

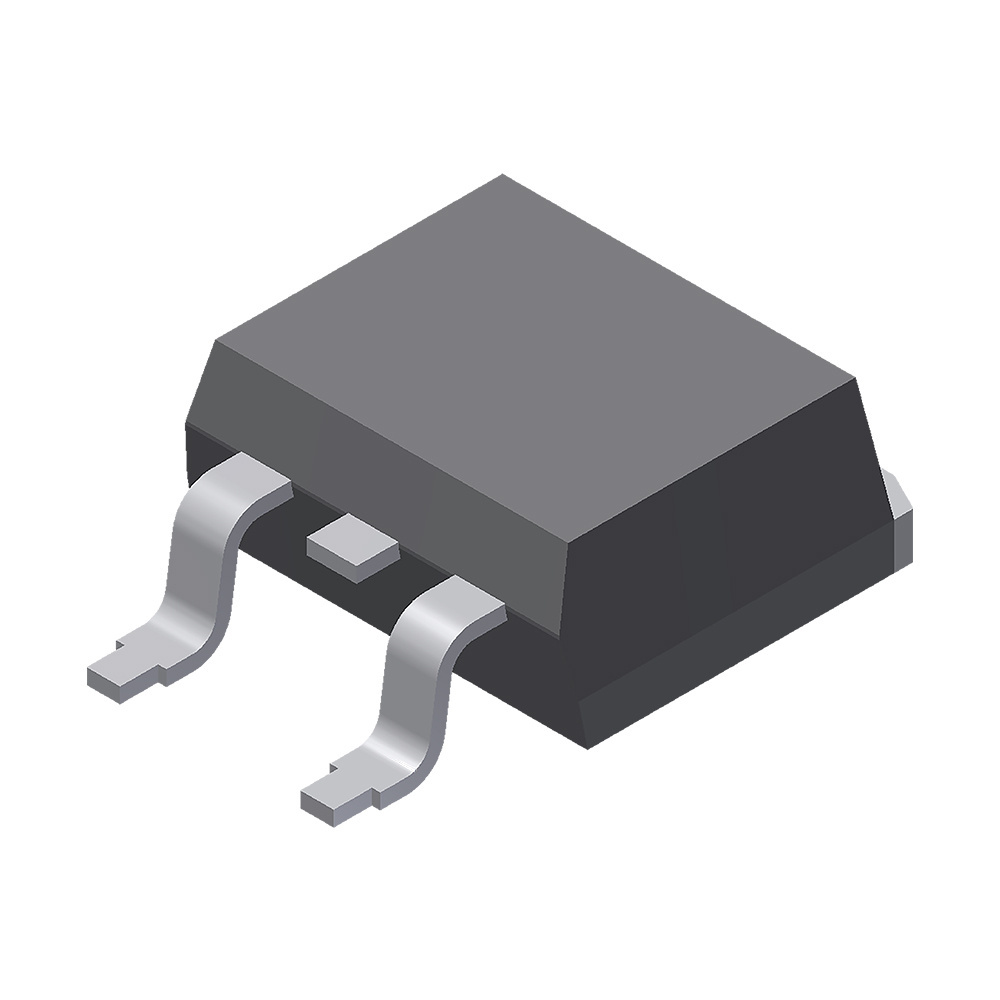

| Package Type | TO-263AB (D2Pak) |
| Business Group | Power Semi |
| Product Line | Power Diode Discrete |
| Max Rep Block Volt Rect (V) | 800 |
| Case temperature (°C) | 140 |
| max virtual junction T (°C) | 175 |
| Vth for P_loss calc (V) | 0.88 |
| r_d for P_loss calc (Ω) | 17 |
| RthJC (kW) | 1 |
| Rth (c-h) (K/W) | 0.25 |
| I_RRM (A) | 200 |
| I_F (AV) (A) | 20 |
| Voltage (V) | 800 |
| Current (A) | 200 |
Features and benefits
