The discrete Standard Diode series comes with a broad variety of packages and breakdown voltages up to 1800V.
Littelfuse IXYS Diode DMA30P1200HB
Our proven Technology

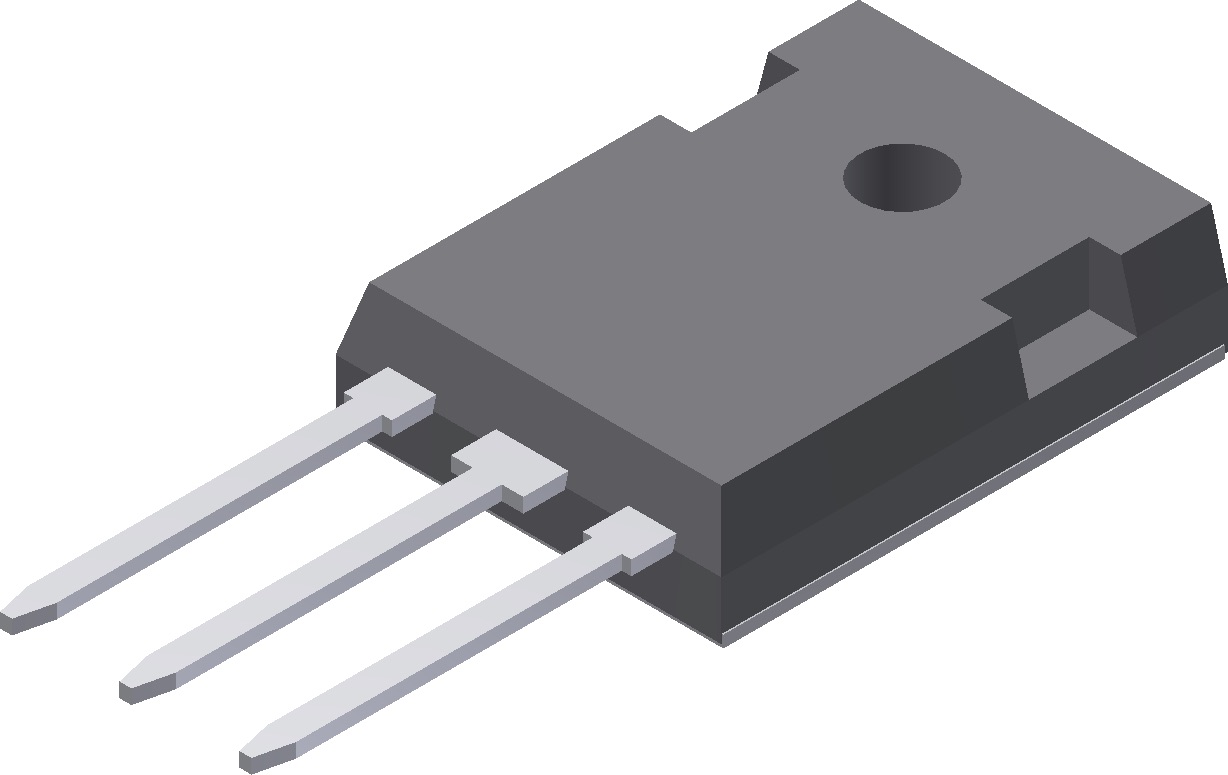

Power Diode Discretes-Rectifier TO-247AD
Specifications
| Weight | 0.006 kg |
|---|---|
| Weight (g) | 6 |
| Package Type | TO-247AD |
| Business Group | Power Semi |
| Product Line | Power Diode Discrete |
| Max Rep Block Volt Rect (V) | 1200 |
| Case temperature (°C) | 130 |
| max virtual junction T (°C) | 175 |
| Vth for P_loss calc (V) | 0.81 |
| r_d for P_loss calc (Ω) | 12.7 |
| RthJC (kW) | 0.8 |
| Rth (c-h) (K/W) | 0.25 |
| I_RRM (A) | 370 |
| I_F (AV) (A) | 30 |
| Voltage (V) | 1200 |
| Current (A) | 370 |
Features and benefits
