These products are designed to offer the lowest practical values of reverse recovery current whilst offering wide safe operating area and high di/dt capability required by modern switching components.
For additional technical details, please contact support .

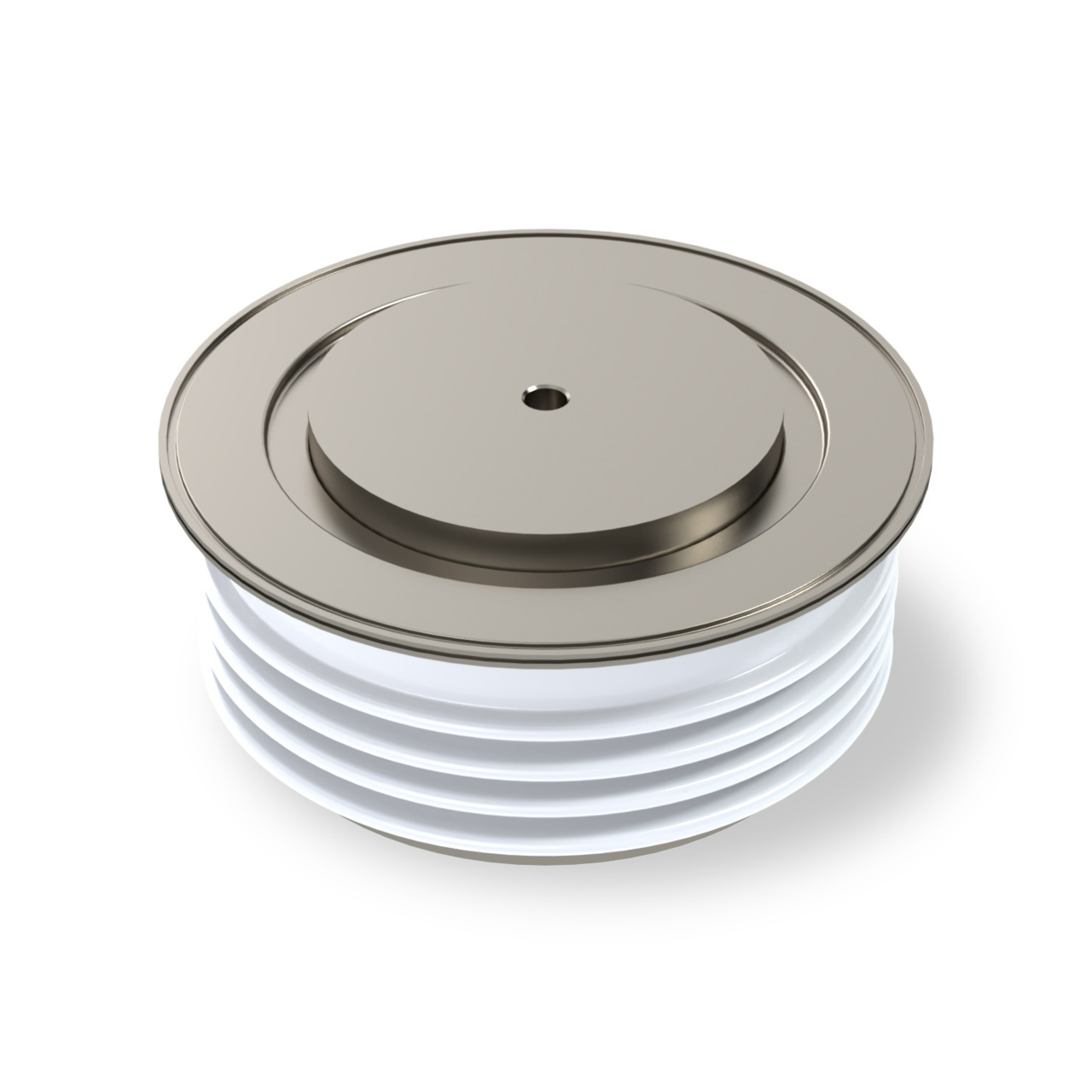

Littelfuse IXYS Discrete Diode F0800LC180
Our proven Technology
Alternative for F0400LC180
Specifications
| Package Type | W4 |
|---|---|
| Packaging | Tray |
| I_TAV at T_K 55°C (A) | 775 |
| I2t Diode (A2/s) | 291 x 10³ |
| Max Op Junc Temp (°C) | 125 |
| VRRM Diode (V) | 1800 |
| IRRM (A) | 380 |
| IFSM 10ms Diode (A) | 7630 |
| Reverse Recovery Charge (µC) | 200 |
| Slope Resistance (mOhms) | 0.692 |
| Rth(j-h) 180°C Sine (K/W) | 0.032 |
| Threshold Voltage (V) | 1.494 |
| Trr (µs) | 1.1 |
| Voltage (V) | 1800 |
| Current (A) | 775 |
Features and benefits
