These parts are particularly suitable for use as anti-parallel diodes used in Gate Turn-Off and Fast Thyristor inverters and as diodes for choppers.

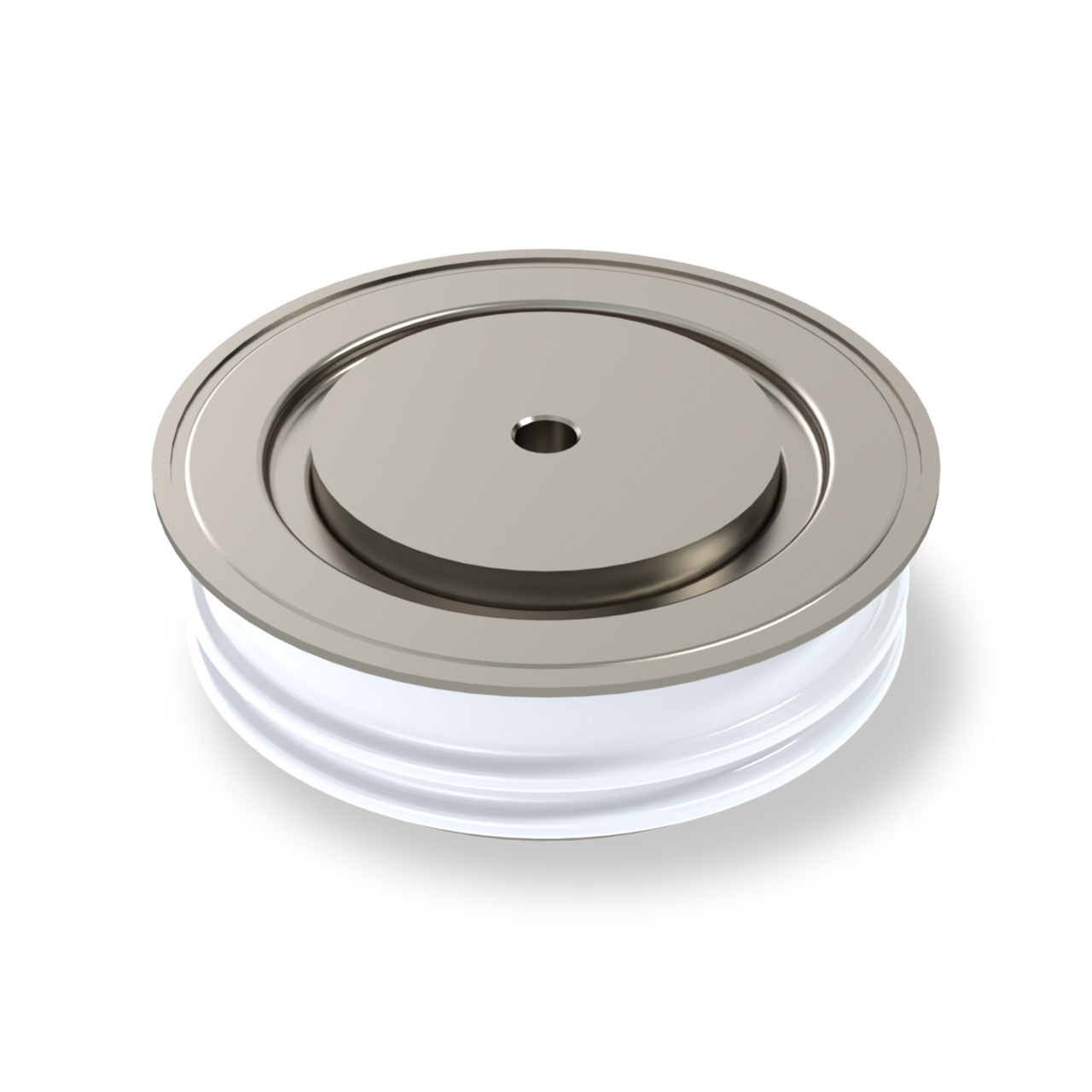

Littelfuse IXYS Discrete Diode M0790YC250
Our proven Technology
Alternative for SM25CXC294
Specifications
| Package Type | W2 |
|---|---|
| Packaging | Tray |
| I_TAV at T_K 55°C (A) | 790 |
| I2t Diode (A2/s) | 405 x 10³ |
| Max Op Junc Temp (°C) | 150 |
| VRRM Diode (V) | 2500 |
| IFSM 10ms Diode (A) | 9000 |
| Reverse Recovery Charge (µC) | 425 |
| Slope Resistance (mOhms) | 0.584 |
| Rth(j-h) 180°C Sine (K/W) | 0.05 |
| Threshold Voltage (V) | 1.272 |
| Trr (µs) | 4 |
| Voltage (V) | 2500 |
| Current (A) | 790 |
Features and benefits
