Our soft recovery diodes are available with a range of reverse recovery characteristics tailored to meet the requirements of both freewheeling and snubber applications. These devices are available with blocking voltages up to 6kV and average currents up to 2413A. 24mm to 75mm diameter silicon slices. These parts are particularly suitable where soft recovery is required, such as RCD snubbers, voltage clamping and snubberless applications.
For additional technical details, please contact support .

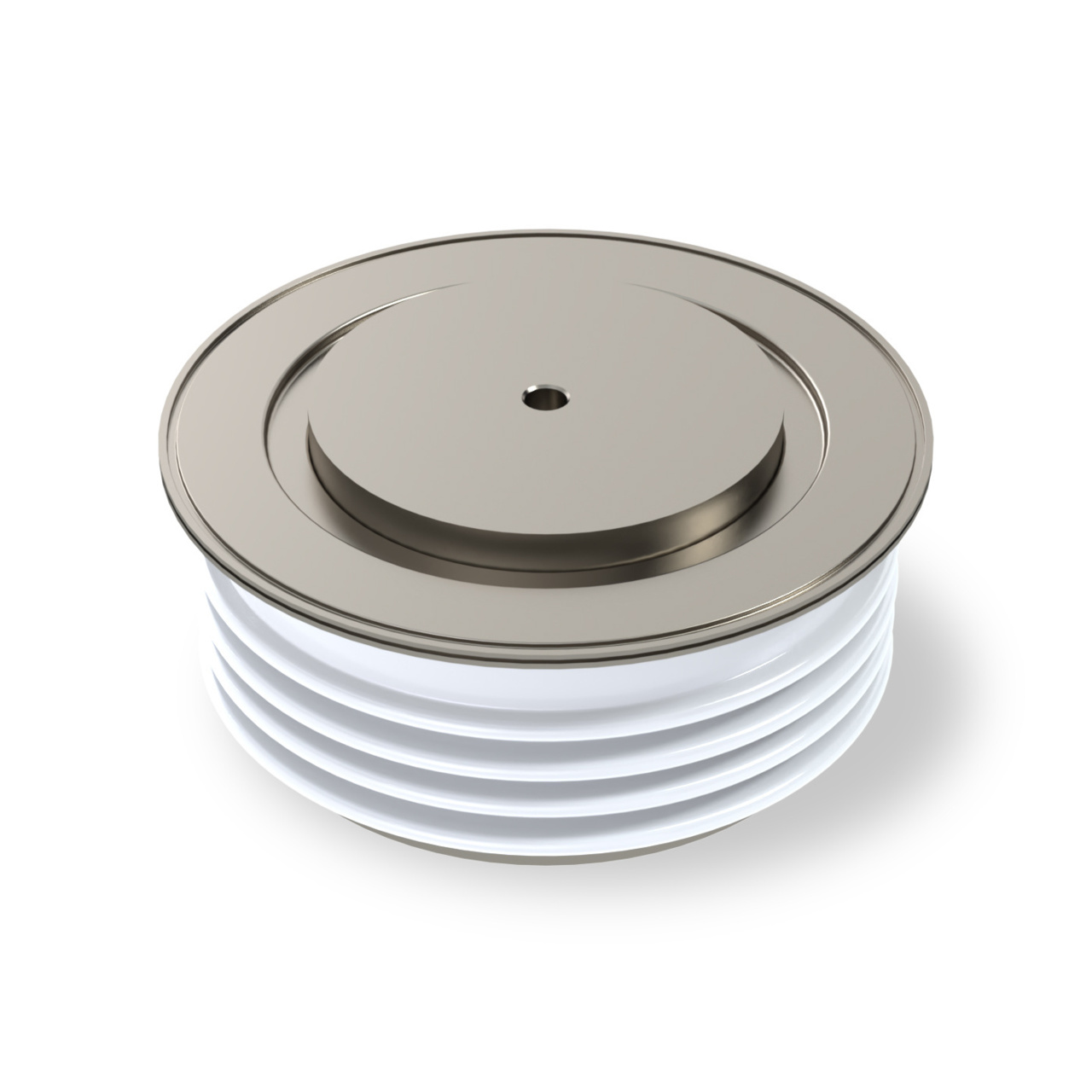

Littelfuse IXYS Discrete Diode M1080LC100
Our proven Technology
Alternative for SM10CXC314
Specifications
| Package Type | W4 |
|---|---|
| Packaging | Tray |
| I_TAV at T_K 55°C (A) | 1080 |
| I2t Diode (A2/s) | 910 x 10³ |
| Max Op Junc Temp (°C) | 125 |
| VRRM Diode (V) | 1000 |
| IFSM 10ms Diode (A) | 13500 |
| Reverse Recovery Charge (µC) | 85 |
| Slope Resistance (mOhms) | 0.314 |
| Rth(j-h) 180°C Sine (K/W) | 0.033 |
| Threshold Voltage (V) | 1.125 |
| Trr (µs) | 1.9 |
| Voltage (V) | 1000 |
| Current (A) | 1080 |
Features and benefits
