These parts are particularly suitable for use as anti-parallel diodes used in Gate Turn-Off and Fast Thyristor inverters and as diodes for choppers.

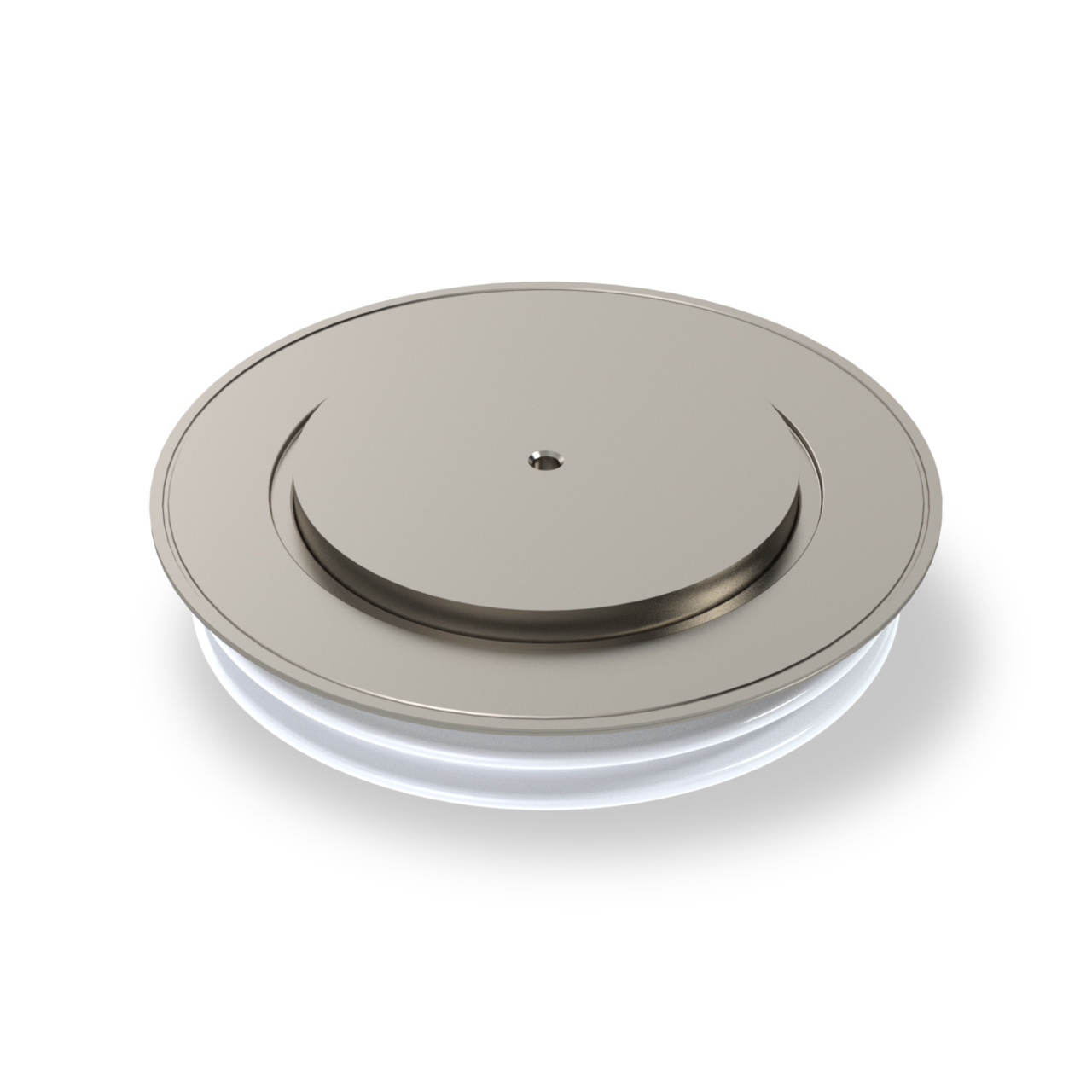

Littelfuse IXYS Discrete Diode M1583VF450
Our proven Technology
Alternative for SM45FXC864
Specifications
| Package Type | W43 |
|---|---|
| Packaging | Tray |
| I_TAV at T_K 55°C (A) | 1583 |
| I2t Diode (A2/s) | 3.08 x 10⁶ |
| Max Op Junc Temp (°C) | 150 |
| VRRM Diode (V) | 4500 |
| IFSM 10ms Diode (A) | 24800 |
| Reverse Recovery Charge (µC) | 2000 |
| Slope Resistance (mOhms) | 0.525 |
| Rth(j-h) 180°C Sine (K/W) | 0.016 |
| Threshold Voltage (V) | 1.693 |
| Trr (µs) | 5 |
| Voltage (V) | 4500 |
| Current (A) | 1583 |
Features and benefits
More information and download request
For more information, access to the product datasheet, or to get in touch with one of our specialists. Please fill out the form below.
Thank you for your request
The datasheet is available below. We will respond to your request promptly.
Download file: Datasheet-M1583VF450
