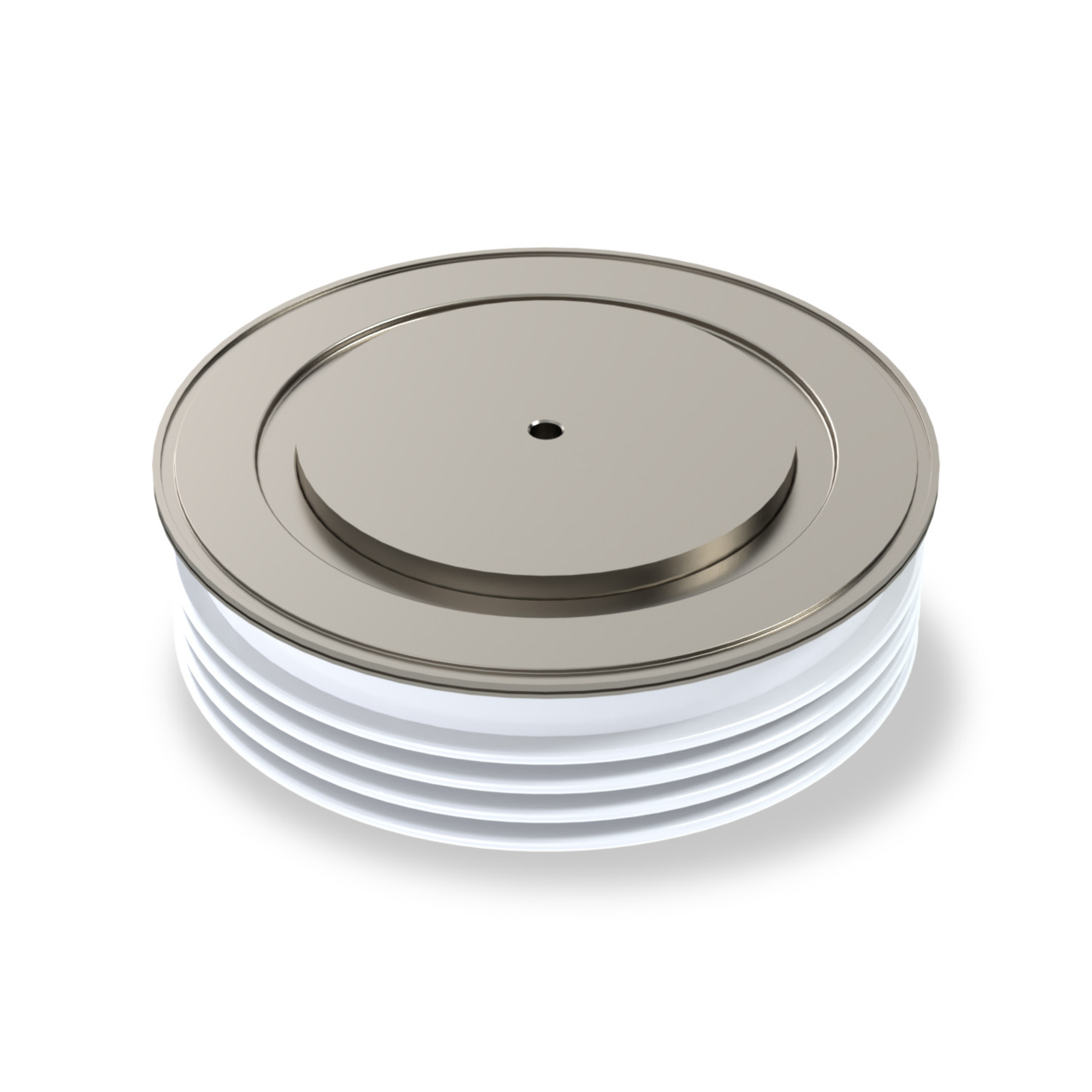

Littelfuse IXYS Discrete Diode M1858NC100
Our proven Technology
Specifications
| Package Type | W5 |
|---|---|
| I_TAV at T_K 55°C (A) | 1858 |
| I2t Diode (A2/s) | 3.25 x 10⁶ |
| Max Op Junc Temp (°C) | 125 |
| VRRM Diode (V) | 1000 |
| IFSM 10ms Diode (A) | 25000 |
| Reverse Recovery Charge (µC) | 120 |
| Slope Resistance (mOhms) | 0.127 |
| Rth(j-h) 180°C Sine (K/W) | 0.022 |
| Threshold Voltage (V) | 1.127 |
| Trr (µs) | 2.5 |
| Voltage (V) | 1000 |
| Current (A) | 1858 |
