Littelfuse IXYS Diode MDMA110P1600TG
Our proven Technology

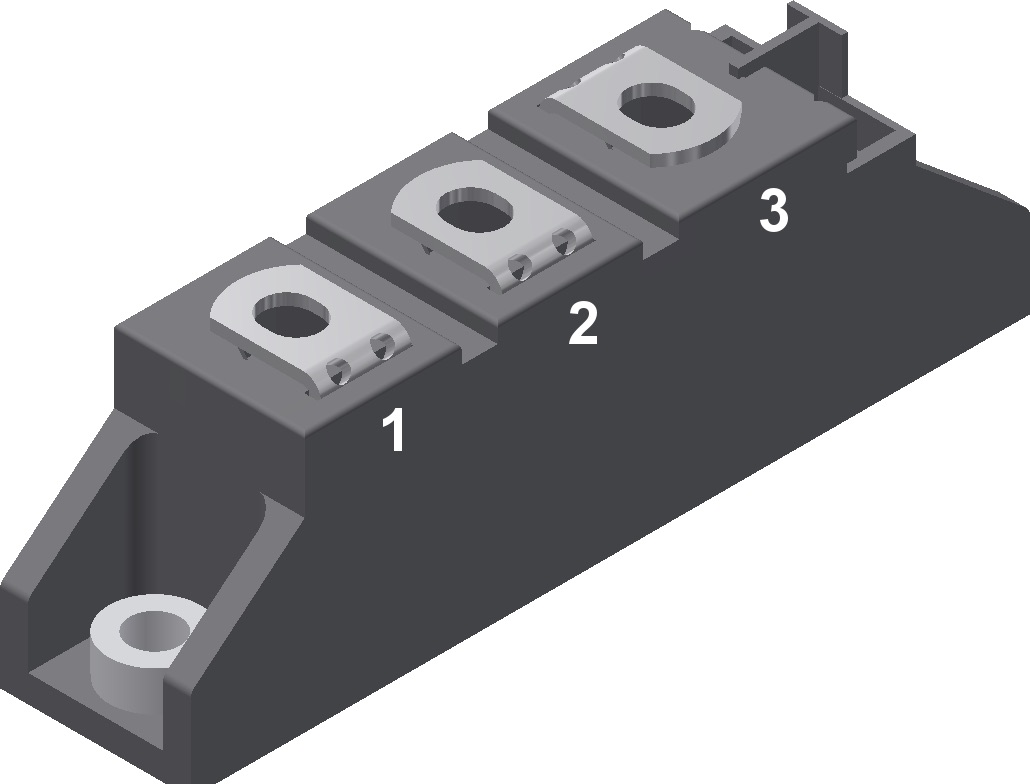

Bipolar Module – Diode TO-240AA
Specifications
| Weight | 0.09 kg |
|---|---|
| Weight (g) | 90 |
| Package Type | TO-240AA |
| Business Group | Power Semi |
| Product Line | Bipolar Module |
| Max Rep Block Volt Rect (V) | 1600 |
| Case temperature (°C) | 100 |
| max virtual junction T (°C) | 150 |
| Vth for P_loss calc (V) | 0.82 |
| r_d for P_loss calc (Ω) | 2.8 |
| RthJC (kW) | 0.3 |
| Rth (c-h) (K/W) | 0.2 |
| I_RRM (A) | 2000 |
| I_F (AV) (A) | 110 |
| Voltage (V) | 1600 |
| Current (A) | 2000 |
Features and benefits
