Littelfuse presents the new family of phase control thyristors for industrial application. Devices with voltage ranges from 1200V to 2500V are available, making them suitable for applications with line voltages from 230V to over 600V.

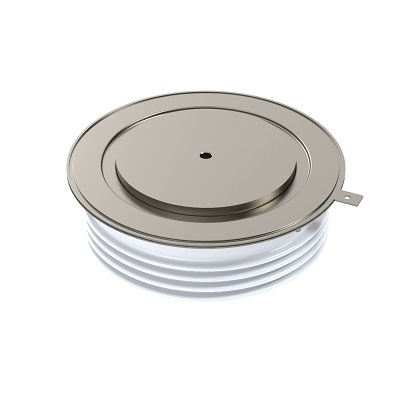

B1725NC120
Our proven Technology
Specifications
| IF(AV) @ TK 55C (A) | 1725 |
|---|---|
| PG(AV) (W) | 4 |
| Critical dv/dt (V/µs) | 1000 |
| di/dt (A/µs) | 500 |
| DC Voltage (V) | 1200 |
| Gate Trigger Voltage MAX (V) | 3 |
| Holding Current (A) | 1 |
| I Squared t Thyristor (kA) | 3700 |
| IDRM at VDRM 125C (mA) | 100 |
| Itav (A) | 1725 |
| VRRM (V) | 1200 |
| PG(AV)max (W) | 30 |
| TJ(max) (°C) | 125 |
| VRRM/DRM (V) | 1200 |
| On-State Current ITRMS (A) | 3460 |
| VTM (V) | 1.41 |
| VDRM (V) | 1200 |
| Slope Resistance (mOhm) | 0.169 |
| Rth(j-h) 120C RctPlse (K/W) | 0.0271 |
| Rth(j-h) 180C SineWve (K/W) | 0.0248 |
| Threshold Voltage (V) | 0.972 |
| ITSM 10ms HalfSine Thy (kA) | 3700 |
| Voltage (V) | 1000 |
| Current (A) | 1725 |
Features and benefits
