Zone protection
Safe and Resilient DC Systems
In complex DC power distribution networks, zone protection is a key strategy for ensuring safe and reliable operation. It divides a power grid into multiple independent zones, allowing faults to be isolated quickly without affecting the rest of the system. As industries transition toward more electrified and interconnected infrastructures, zone protection has become an essential feature for maintaining uptime, optimizing performance, and protecting critical equipment in marine, industrial, and renewable energy environments.
Custom-specific solutions
Certified components
Personal consultation
FAQ: Zone Protection in Marine DC Grids
What is zone protection in a DC power system?
Why is zone protection important in marine DC grids?
How does zone protection work in practice?
What role do solid-state DC breakers play in zone protection?
Is zone protection compatible with advanced DC topologies?
Contact our power electronics specialist Anju for more information about this subject
Proven succes in real applications
DC Grid Protection of Cadeler’s A-Class Wind Turbine Installation Vessels (WTIVs)
The DC multi-bus ring system, engineered by Kongsberg Maritime and protected by Astrol’s 1.5 kV, 3 kA solid-state DC breakers. These advanced breakers offer ultra-fast, arc-free fault isolation, ensuring optimal safety, uptime, and resilience in demanding marine environments.
Protecting the Zeetug’s DC grid against short-circuit and power overload
Discover how system integrator 'BMA Technology' is protecting the ZEETUG's DC grid by using our solid-state DC breaker.
Why zone protection is essential in modern onboard DC power systems
Modern onboard DC power systems—particularly in maritime and offshore applications—are increasingly designed with closed-bus or ring topologies to improve flexibility, efficiency, and survivability. While DC systems eliminate synchronization constraints and enable higher power density and easier integration of energy storage, they also introduce major protection challenges. DC fault currents rise extremely fast, have low natural impedance, and can flow bidirectionally in ring configurations, making traditional overcurrent-based coordination ineffective.

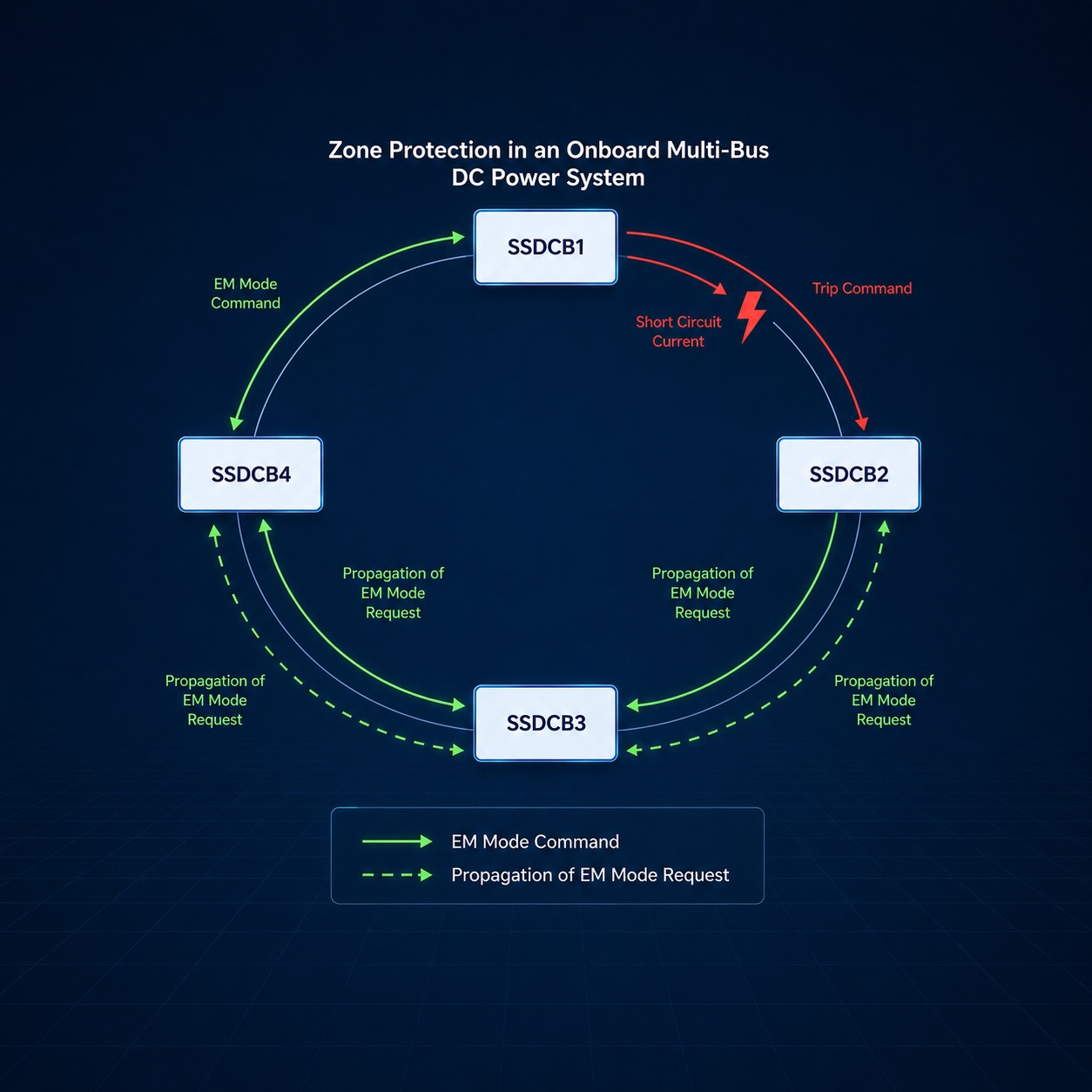

Zone protection addresses these challenges by dividing the onboard DC network into electrically independent zones, each protected by ultra-fast solid-state DC circuit breakers (SSDCBs). In the event of a fault, zone protection enables rapid detection, directional discrimination, and selective isolation of only the affected zone, while maintaining power to essential loads in the remaining zones. This approach is especially critical for islanded maritime systems, where continuity of supply, compliance with classification society requirements, and survivability under fault conditions are paramount
Key advantages of zone protection in DC systems
- Enhanced survivability and continuity of supply
- Selective fault isolation in ring and closed-bus architectures
- Ultra-fast fault clearance with minimal system impact
- Support for scalable and flexible system architectures
Plan Your Consultation with a Specialist
At Astrolkwx, we supply advanced DC protection technology. Our power electronics solutions deliver ultra-fast fault isolation, intelligent diagnostics, and full compatibility with various components. Schedule an online meeting today with one of our technical experts to discover how Astrol’s solutions can enhance the safety, flexibility, and efficiency of your DC power systems.
