Littelfuse brings you a world-leading class of ultra fast and ultra soft recovery diode available from -1.7kV to 6.5kV in current ratings from 270A to 4200A. These diodes incorporate a unique manufacturing process and lifetime control to offer a class leading trade-off between conduction and switching losses. The wide safe operating area (SOA) makes them ideal as freewheeling diodes for snubberless IGBT and IGCT applications or any application which requires a fast, low loss diode. For example, traction, medium voltage drives, induction heating and pulsed power applications.
For additional technical details, please contact support .

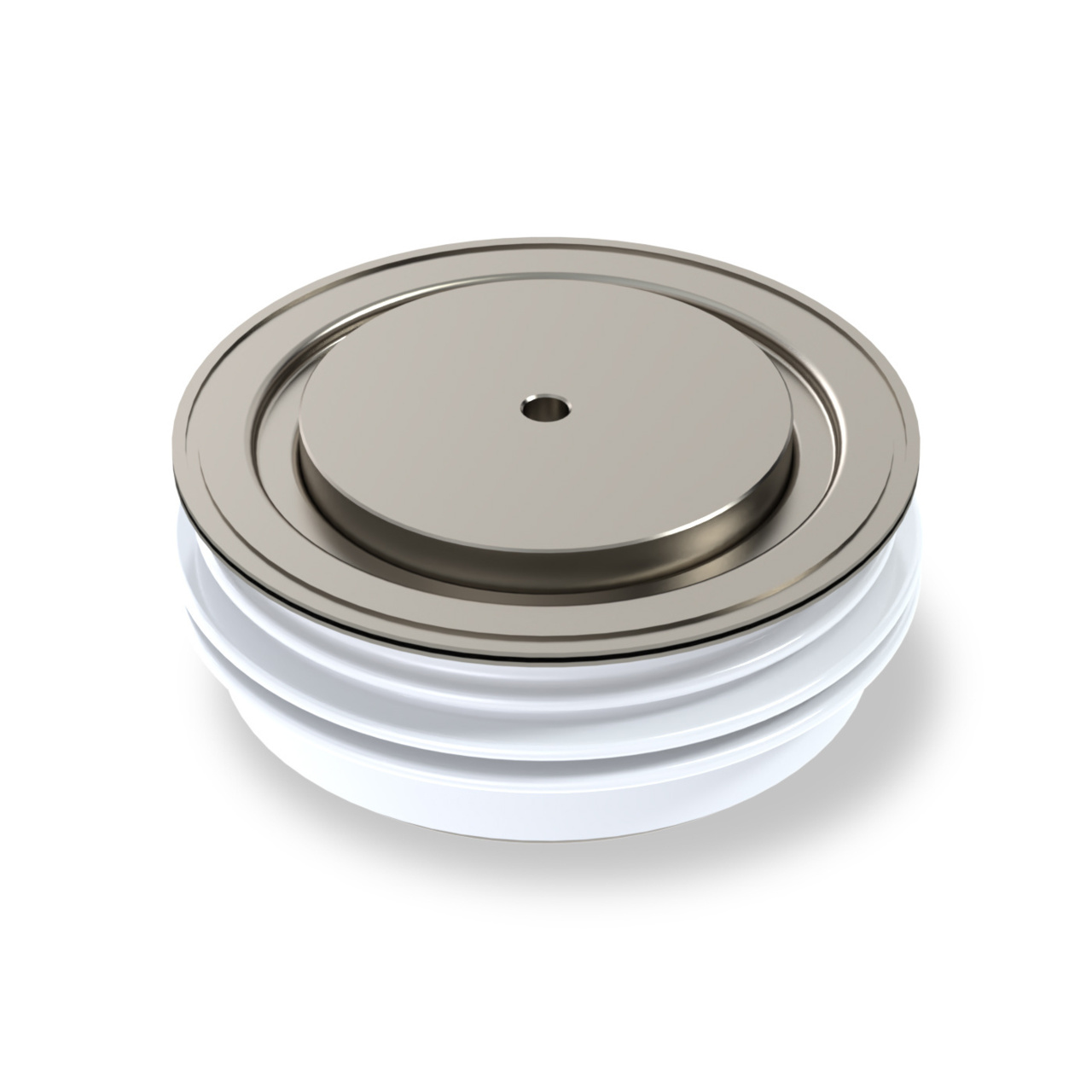

Littelfuse IXYS Discrete Diode E0460QC45E
Our proven Technology
Alternative for E0460QC40C, E0900NC400
Specifications
| Package Type | W68 |
|---|---|
| Packaging | Tray |
| I_TAV at T_K 55°C (A) | 533 |
| I2t Diode (A2/s) | 231 x 10³ |
| Max Op Junc Temp (°C) | 140 |
| VRRM Diode (V) | 4500 |
| IRRM (A) | 460 |
| IFSM 10ms Diode (A) | 6800 |
| Reverse Recovery Charge (µC) | 685 |
| Slope Resistance (mOhms) | 2.716 |
| Rth(j-h) 180°C Sine (K/W) | 0.0274 |
| Threshold Voltage (V) | 2.246 |
| Trr (µs) | 1.15 |
| Voltage (V) | 4500 |
| Current (A) | 533 |
Features and benefits
